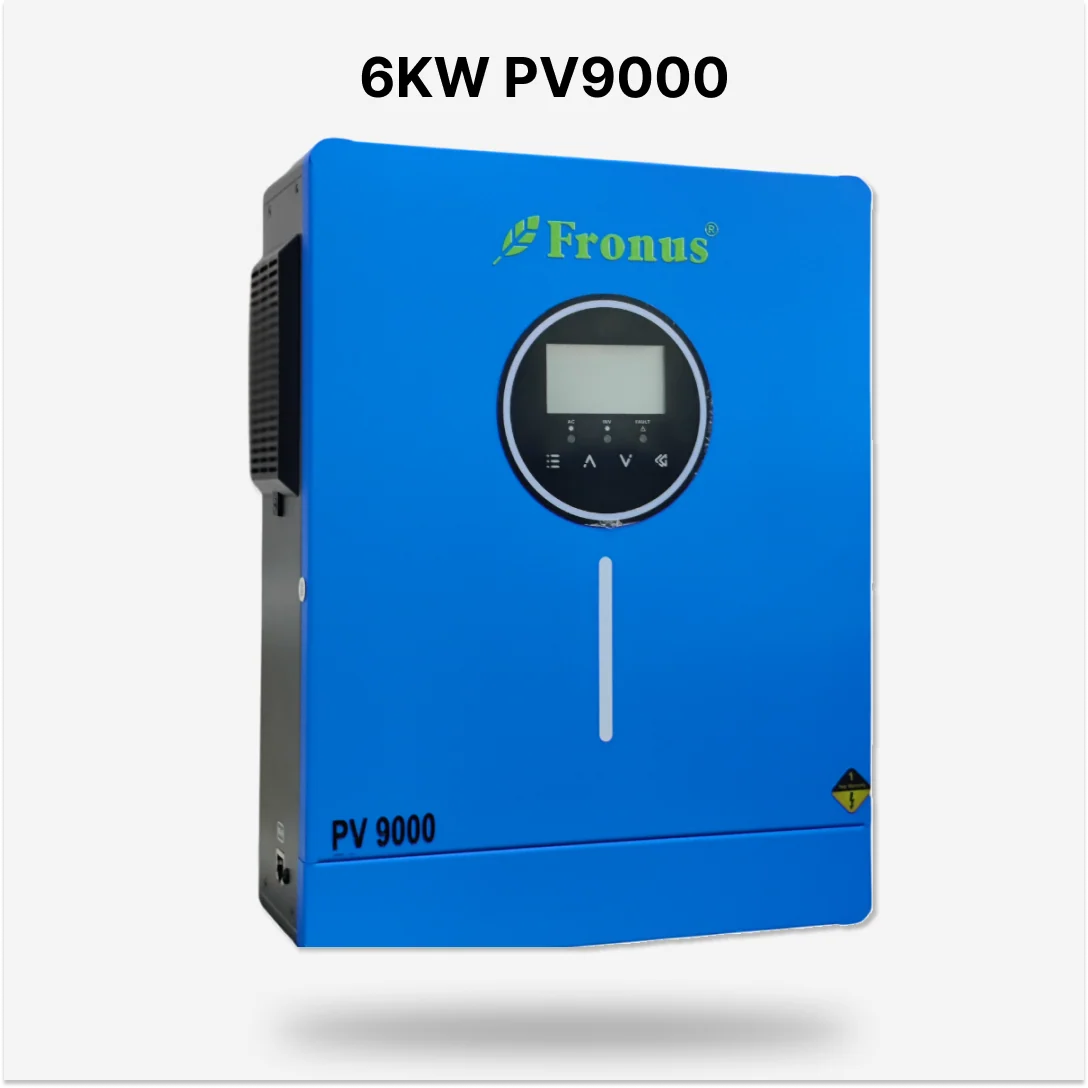

Fronus 6kW Single-Phase Off-Grid Inverter

Name: Fronus 6kW Single-Phase Off-Grid Inverter
Brand: Umar Electronic Store
Price: 35000.00 PKR
Availability: InStock

Rs.41,178

Rs.35,000

SALE

Delivery Time 2 to 4 Days

Brand FRONUS

In stock

Quantity

Order on Whatsapp

Price Beating Policy

7 Days Warranty

Genuine Products

Description

The Fronus Meta 6KW PV9000 is a high-performance single-phase hybrid solar inverter engineered to run directly with or without batteries. Designed to optimize energy yield, it supports up to 9000W of total PV panel capacity across dual MPPT trackers, delivering exceptional DC-to-AC conversion efficiency up to 97%. Equipped with intelligent grid-feeding capability and seamless WAPDA auto-sharing technology, this inverter dynamically balances solar generation and grid power during cloudy conditions or high load demands. Lightweight and compact, it provides a reliable, cost-effective solution for modern residential and commercial solar installations.

Key Features:

Battery-Less Operation: Runs directly on solar panel output during daylight hours without requiring battery storage.
Dual MPPT Trackers: Allows two separate panel array strings to optimize energy harvesting under varying sunlight conditions.
High PV Input Capacity: Supports up to 9000W maximum solar panel power (4500W × 2).
WAPDA Sharing Technology: Automatically blends utility grid power with solar production to meet heavy loads seamlessly.
Grid Feeding Support: Integrated net-metering ready output (up to 3000W grid feed) to export surplus power.
Wide Voltage Range: Operates across a 60V–450VDC MPPT range with a low 90VDC startup threshold.
High Efficiency Performance: Delivers up to 97% conversion efficiency with pure sine wave output.
Comprehensive Built-In Protection: Features automated protection against over-voltage, short-circuits, surges, and high temperatures.
Compact & Lightweight Form Factor: Slim wall-mount design weighing just 4.92 kg for quick installation.
Smart Communication: Built-in RS232 interface with optional Wi-Fi module for mobile app monitoring.

Specifications

Model: META-6KW
Rated Output Power: 6KW / 6KVA
Phase Configuration: 1-Phase Input / 1-Phase Output
Max PV Input Power: 9000W (4500W × 2)
Max DC Input Voltage: 500VDC
Start-Up Voltage: 90VDC
MPPT Operating Voltage Range: 60VDC – 450VDC
MPPT Trackers / Max Input Current: 2 Trackers / 18A per tracker
Grid Feed Output Power: Up to 3000W
Nominal AC Output Voltage: 220 / 230 / 240VAC
AC Output Voltage Range: 195.5VAC – 253VAC
Nominal Output Current: 26.5A
Power Factor: >0.99
Peak Conversion Efficiency (DC to AC): Up to 97%
AC Input Voltage Range: 90VAC – 280VAC
AC Auto Restart Voltage (UPS Mode): 170–280VAC / 180VAC
Frequency Range: 50Hz / 60Hz (Auto Sensing)
Communication Interface: RS232 (Built-in) / Wi-Fi (Optional)
Ingress Protection Rating: IP21
Dimensions (H × W × D): 360.7 mm × 278 mm × 106 mm
Net Weight: 4.92 kg
Operating Temperature: -10°C to 50°C
