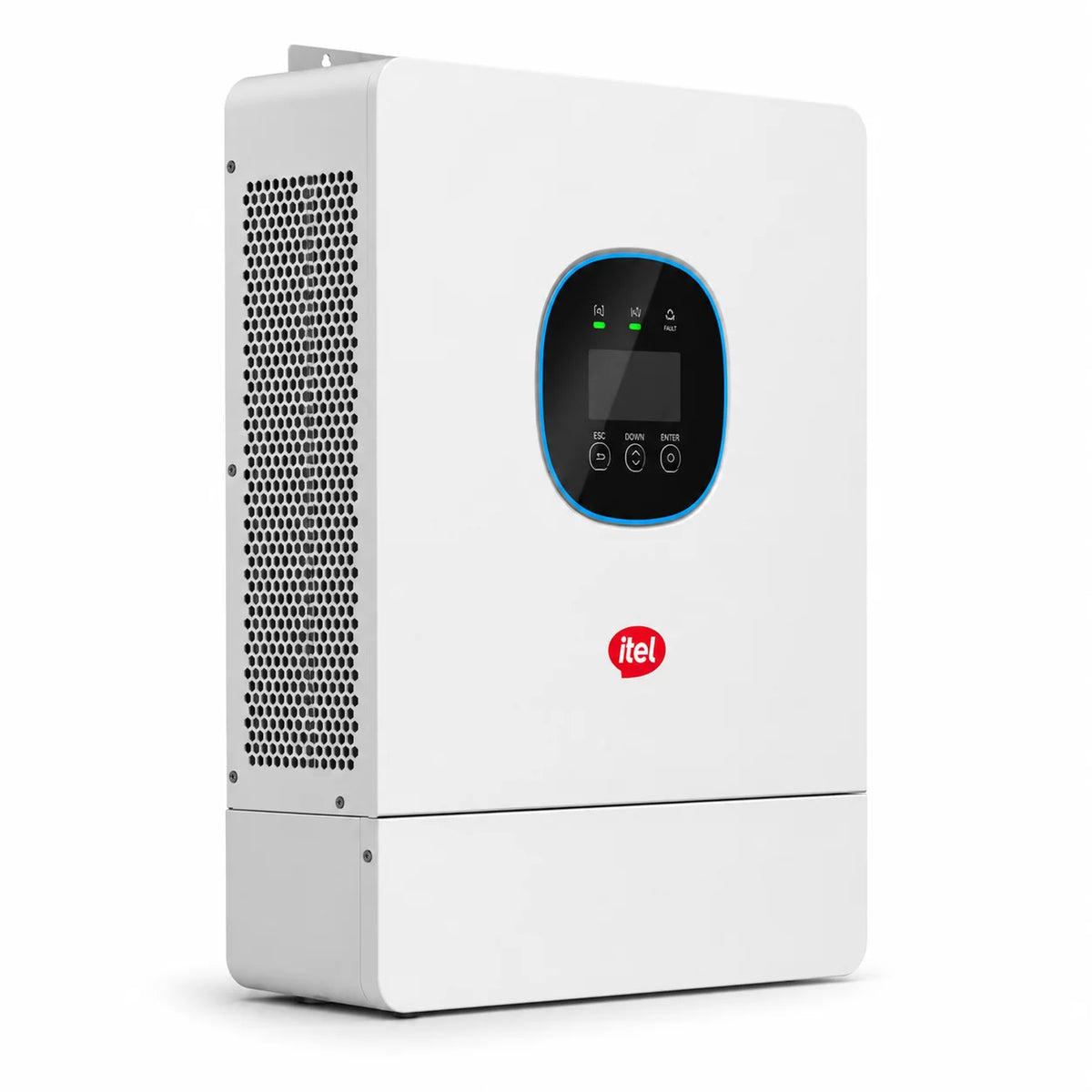

iTel 1.6kW Off-Grid Solar Inverter

Name: iTel 1.6kW Off-Grid Solar Inverter
Brand: Umar Electronic Store
SKU: IN-ITEL-1.6KW
Price: 41000.00 PKR
Availability: InStock

Rs.48,237

Rs.41,000

SALE

Delivery Time 2 to 4 Days

Brand ITEL

In stock

Quantity

Order on Whatsapp

Price Beating Policy

7 Days Warranty

Genuine Products

Description

Detailed Description: Empower your essential household loads with the compact and efficient itel 1kW, 1.5kW, and 3kW Single-Phase Off-Grid Solar Inverters (IPV-1K12U / IPV-1K512U / IPV-3K24U). Engineered with advanced MPPT charge controllers and high-frequency pure sine wave inversion, these units offer seamless energy conversion for small-scale solar setups.

Featuring an IP54-rated protective housing, these inverters guard against dust ingress and water exposure. They support up to 380V max grid input voltage and come packed with comprehensive protection suites including short circuit, over-voltage, overload, and thermal safeguards. Backed by a 3-Year Replacement and 5-Year Service Warranty with CarlCare service support, they offer dependable backup energy for small spaces.

Key Features:

High Efficiency MPPT Tracking: Built with 99.9% MPPT efficiency and over 93% battery conversion efficiency to maximize solar energy harvesting.
Pure Sine Wave Output: Provides clean, stable AC power safe for sensitive household electronics, computers, and lights.
IP54 Weather & Dust Protection: Sealed construction protects internal components against ambient dust and moisture for enhanced longevity.
Powerful Surge Overload Handling: Delivers 150% overload for 10 seconds and up to 200% surge overload capacity for 2 seconds to launch initial load spikes.
Flexible Battery Compatibility: Supports Lead-Acid, Lithium-Ion, and custom user-defined battery configurations in 12V and 24V setups.
Quiet & Thermal-Stable Operation: Features intelligent fan cooling running below 55 dB, operating reliably up to 45°C without power degradation.

Specifications

Model & Core Power

Model Names: IPV-1K12U (1kW)

Nominal AC Output Power: 1000W (1kW Model) / 1500W (1.5kW Model) / 3000W (3kW Model)

Max. Output Apparent Power: 1200VA (1kW Model) / 1800VA (1.5kW Model) / 3600VA (3kW Model)

Nominal AC Voltage: 220VAC / 230VAC / 240VAC

Overload / Surge Capacity: 150% for 10 seconds / 200% for 2 seconds (1500W @ 2s on 1kW; 2000W @ 2s on 1.5kW; 3000W @ 2s on 3kW)

Switch / Transfer Time: 20ms

Total Voltage Harmonic Distortion (THD): <3%

Solar Array & MPPT Input

Max. Solar (PV) Input Power: 600W (1kW Model) / 650W (1.5kW Model) / 1500W (3kW Model)

Max. PV DC Input Voltage: 120V (1kW Model) / 130V (1.5kW Model) / 145V (3kW Model)

Start-Up Voltage: 20V DC (1kW) / 21V DC (1.5kW) / 36V DC (3kW)

MPPT Voltage Range: 16V – 120V DC (1kW) / 15V – 120V DC (1.5kW) / 30V – 120V DC (3kW)

Max. PV Input Current: 23A (1kW Model) / 20A (1.5kW Model) / 25A (3kW Model)

Number of MPPT Trackers: 1

MPPT Efficiency: ≥99.9%

Battery & Charging

Battery Types: Lead-Acid, Lithium-Ion, User Defined

Rated Battery Voltage: 12V DC (1kW & 1.5kW Models) / 24V DC (3kW Model)

Battery Voltage Range: 10V – 15V DC (12V models) / 20V – 30V DC (24V model)

Max. MPPT Charging Current: 50A (1kW) / 50A (1.5kW) / 60A (3kW)

Max. Mains / Generator Charging Current: 60A (1kW) / 60A (1.5kW) / 60A (3kW)

Max. Discharging Current: 100A (1kW) / 125A (1.5kW) / 125A (3kW)

Battery Mode Efficiency: >93%

Grid AC Input Specs

Max. Grid Input Voltage: 380Vrms

Input Voltage Range: 160VAC – 280VAC (1kW) / 90VAC – 280VAC (1.5kW & 3kW)

Max. AC Input Current (Bypass): 8A (1kW) / 20A (1.5kW) / 10A (3kW)

Nominal Operating Frequency: 50Hz / 60Hz

Build & System Details

Ingress Protection Level: IP54 (Dustproof & Water Resistant)

Dimensions (D x W x H):1kW Model: 100 x 272 x 335 mm 1.5kW & 3kW Models: 108 x 350 x 290 mm

Net Weight: 3.4 kg (1kW) / 5.5 kg (1.5kW) / 6 kg (3kW)

Communication Interfaces: RS232 (1kW Model) / RS485 & RS232 (1.5kW & 3kW Models)

Cooling Method: Intelligent Fan Cooling

Noise Level: <55 dB (PV Connected) / <45 dB (No PV Connected)

Operating Temperature: -10°C to +55°C (Stable operation up to 45°C without power degradation)

Protections: Short Circuit, Overload, Overvoltage, Overtemperature, DC Type III & AC Type III Surge Protection
