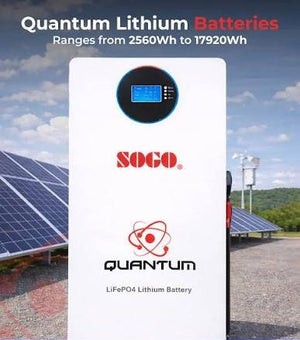

SOGO Quantum 51.2V 200Ah lithium battery front view

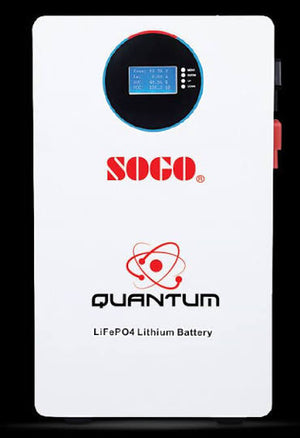

SOGO Quantum 200Ah battery for home solar backup

SOGO Quantum 200Ah lithium battery Umar Store

SOGO Quantum 51.2V 200Ah Lithium Battery

Name: SOGO Quantum 51.2V 200Ah Lithium Battery
Brand: Umar Electronic Store
Price: 430000.00 PKR
Availability: InStock

Rs.505,895

Rs.430,000

SALE

Delivery Time 2 to 4 Days

Brand SOGO

In stock

Quantity

Order on Whatsapp

Price Beating Policy

7 Days Warranty

Genuine Products

Description

The SOGO Quantum 51.2V 200Ah is a 10.24 kWh lithium battery for solar storage and home backup. Its large capacity suits homes that need longer power during load shedding. It is a genuine SOGO product sold with cash on delivery across Pakistan.

Key Features

10.24 kWh High Capacity: Delivers 10,240 Wh of total energy with 9,216 Wh usable energy at 90% Depth of Discharge (DOD).
6,000+ Deep Cycles: Built with premium LiFePO4 cells to ensure a long operational design life of 10+ years.
Smart BMS Protection: Multi-layer internal system protecting against overcharging, over-discharging, overcurrent, short circuits, and temperature fluctuations.
Parallel Expansion: Connect up to 15 battery units in parallel to meet high-capacity power requirements.
Flexible Dual Mounting: Enclosure design supports both space-saving wall-mounted and floor-standing installations.
Digital LCD Status Display: Front screen provides real-time visibility of voltage, current, state of charge (SOC), and operational diagnostics.
Price per kWh: about Rs. 42,000
Genuine SOGO product from Umar Store.

Specifications

Technical Specifications

Model: SK-51.2V 200Ah (LBS 48V 200Ah)
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Nominal Voltage: 51.2 VDC
Nominal Capacity: 200 Ah
Total Energy: 10,240 Wh (10.24 kWh)
Usable Energy (90% DOD): 9,216 Wh
Voltage Window: 44.8 V – 58.4 VDC
Fast Charge Voltage: 57.6 VDC
Float Charge Voltage: 56.0 VDC
Low DC Cut-Off Voltage: 46.8 VDC
Max. Continuous Charge Current: 100 A
Max. Continuous Discharge Current: 150 A
Max. Pulse Discharge Current: 200 A (1 Second)
Scalability: 1 to 15 units in parallel
Communication Interface: CAN, RS485
Terminal Type: Double M8
Cycle Life (+25°C, 0.5C, 90% DOD): >6000 Cycles
Safety Standard: UN38.3, MSDS
Ingress Protection: IP20
Working Temperature Range: Charge: 0°C to +50°C | Discharge: -10°C to +50°C
Dimensions (L × W × H): 850 × 660 × 178 mm
Net Weight: 88.1 kg
