Fronus Infineon Reborn PV3200 3kW Hybrid Solar Inverter

Name: Fronus Infineon Reborn PV3200 3kW Hybrid Solar Inverter
Brand: Umar Electronic Store
SKU: IF-REBORN-3KW
Price: 71000.00 PKR
Availability: InStock

Rs.83,532

Rs.71,000

SALE

Delivery Time 2 to 4 Days

Brand FRONUS

In stock

Quantity

Order on Whatsapp

Price Beating Policy

7 Days Warranty

Genuine Products

Description

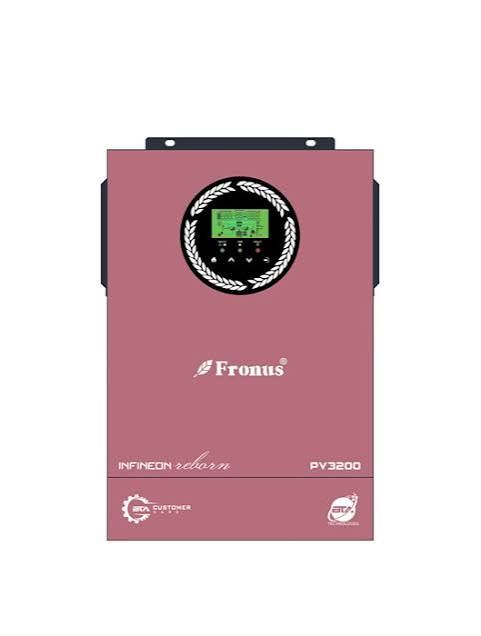

Fronus Infineon Reborn PV3200 3kW Hybrid Solar Inverter

Description Power your home or office efficiently with the Fronus Infineon Reborn PV3200 3kW Hybrid Solar Inverter. Delivering 3000W output power with up to 94% peak efficiency, this 24V hybrid unit seamlessly integrates solar generation, utility power, and battery backup into a compact frame. It features an 80A MPPT solar charger supporting up to 3000W PV input, clean pure sine wave delivery, dual Line/UPS transfer modes, and complete circuit protection to handle sensitive electronics and motor loads effortlessly.

Key Features

3kW / 3.2kVA Clean Power Output: Delivers 3000W of pure sine wave power to protect sensitive appliances, computers, and home electronics.
Integrated 80A MPPT Solar Controller: Maximizes energy extraction with support for up to 3000W PV array power and a wide 30Vdc–400Vdc operating range.
High Efficiency Performance: Achieves up to 94% peak inverter efficiency and >95% line mode efficiency.
Selectable Transfer Modes: Fast 10ms transfer time for sensitive IT loads/UPS and 20ms for general household appliances.
2x Surge Power Handling: Accommodates motor starting loads with up to 2x rated power capacity for 5 seconds.
Multi-Battery Compatibility: Optimized 3-step charging algorithms for 24V AGM, Gel, and Flooded battery systems.
Circuit Breaker Safeguards: Features short-circuit circuit breaker protection alongside overload and thermal protection.
Compact & Lightweight Mounting: Space-saving footprint weighing just 5.4 kg for simple installation.

Specifications

Model Name: Fronus Infineon Reborn PV3200

Inverter Type: 3kW Hybrid Solar Inverter

Rated Output Power: 3200VA / 3000W

Output Voltage Waveform: Pure Sine Wave

Output Voltage Regulation: 230VAC ±5%

Output Frequency: 50Hz

Peak Efficiency: 94%

Surge Capacity: 2x Rated Power for 5 seconds

No-Load Power Consumption: <35W

Nominal DC Input Voltage: 24Vdc

Compatible Battery Types: AGM, Gel, Flooded

Bulk Charging Voltage: 28.2Vdc (AGM/Gel) / 29.2Vdc (Flooded)

Floating Charging Voltage: 27Vdc

Maximum Solar Charging Current: 80A

Maximum PV Array Power: 3000W

PV Array MPPT Voltage Range: 30Vdc – 400Vdc

Max. PV Array Open Circuit Voltage: 400Vdc

Nominal Input Voltage: 230Vac

Maximum AC Charging Current: 60A (@ V_in = 230Vac)

Transfer Time: 10ms (UPS Mode) / 20ms (Appliance Mode)

Short Circuit Protection: Circuit Breaker

Dimensions (D x W x H): 390 x 270 x 100 mm

Net Weight: 5.4 kg

Safety Certification: CE

Operating Temperature: -10°C to 50°C
