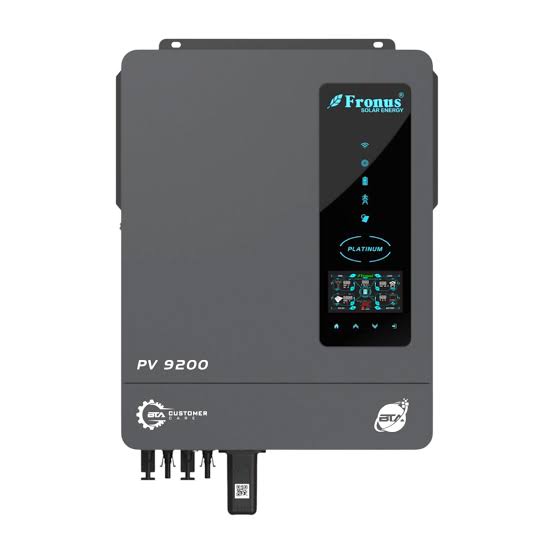

Fronus Platinum PV9200 8.2kW Hybrid Solar Inverter

Maximize energy independence with the high-capacity Fronus Platinum PV 9200 Hybrid Solar Inverter. Featuring an 8200W / 8200VA rated output power and a massive 9200W maximum PV array input capacity, this single-phase hybrid unit is designed for heavy-duty residential and commercial solar installations. It offers seamless battery-free operation, native compatibility with 48V Lithium-ion batteries, an upgraded MPPT solar charger (up to 160A), dynamic RGB illumination, and an interactive touch-screen LCD. Built with dual load outputs for intelligent power management and an integrated anti-dust protection kit, the Platinum PV 9200 ensures long-lasting performance and peak efficiency up to 98%.

Key Features

• 8.2kW Pure Sine Wave Output: Provides 8200W continuous rated AC output power with 16400W surge capacity to easily power heavy loads.

• High PV Input Array (9.2kW): Supports up to 9200W maximum PV array power with a 500VDC maximum input voltage.

• Upgraded 160A MPPT Solar Charger: High-efficiency MPPT technology charges energy storage systems rapidly with up to 160A solar charging current.

• Dual Smart & Main Load Management: Intelligently allocates power between the main load (up to 8200W) and secondary load (up to 2733W in battery mode).

• Lithium-Ion Battery Compatible: Seamlessly integrates with 48V Lithium-ion and traditional battery setups.

• Works With or Without Battery: Flexible system operation allows powering AC loads directly from PV generation without battery connection.

• Touch Screen LCD & RGB Lighting: Interactive touch display paired with ambient RGB status lights for intuitive control and modern aesthetics.

• Built-in Anti-Dust Kit: Factory-installed filtration shield wards off dust and debris to extend internal component life.

• Remote Wi-Fi Monitoring: Built-in Wi-Fi module allows full system control and tracking from anywhere via mobile app.
